Hexagon for Github

Open Source

There are many commercial power meters and gird analyzers. But the Babelbee is about Open Source. So if our software does not solve your problems then just fork it on GitHub and customize this electric power analyzer according to your needs.

View details »

Hexagon for Electric grid

Electric Power

Via plugable coils and wires you can tap three 1-phase or one 3-phase AC line with up to 230 volts. We also made sure that you can measure the neutral line, which is very important in order to detect faulty power installations.

View details »

Hexagon for Monitoring

Monitoring

For the continuous analysis of AC power lines we have added a dedicated chip, the ADE 7880. It operates with a very high precision of 24 bit and allows the access to high speed samples. So you actually can watch the power grid in real time.

View details »

Hexagon for Management

Management

If you see something, say something! Use the Ethernet port and the pairs of industrial communication busses to integrate other actors. And if they do not talk you still can use up to four relays to switch some power lines directly.

View details »

Professional and Open
but still a Maker Kit.

The Babelbee is primarly a building block for froods who want to make things on their own. We provide all the bits, all the documentation to share all the fun …

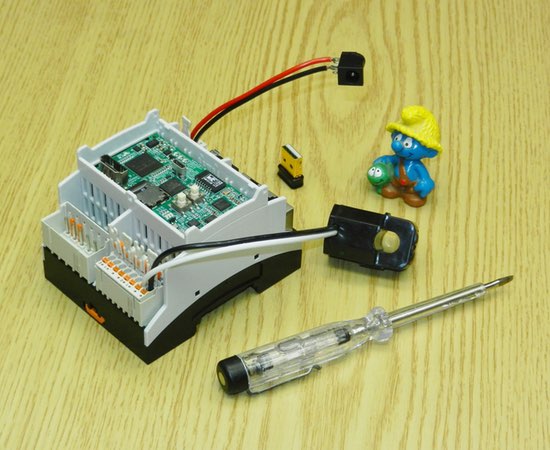

Babelbee Overview

We also paid a lot of attention to details, so that all electric safety standards could be met if needed. If you know where your towel is, then the Babelbee is a truly viable part for your next real world project.

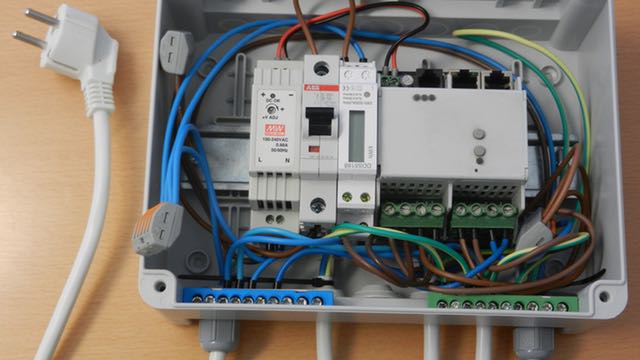

Build a Grid Analyzer

Just put your Babelbee into a rugged box, add a circuit breaker and the power cables of your choice. Now you can take this power analyzer where ever you want. Go hunting for those wierd grid distortions.

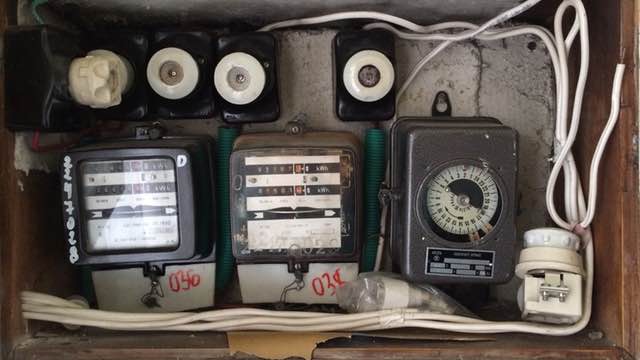

Skip Smart Metering

The renewable grid of the future does not really need the so called "Smart Metering". The Babelbee will provide software examples for decentralized grid management without any risky external communication. Experiment with and learn about the future of the gridco.de.

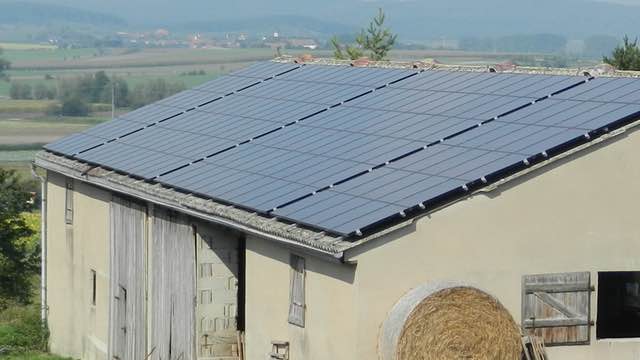

Debug a PV System

Does your PV system perform below expectation? Hook up a Babelbee to the power lines and hack yourself some code to read the inverters status information. This could allow you to see where the trouble is. Perhaps you are hitting a line voltage above legal limits?

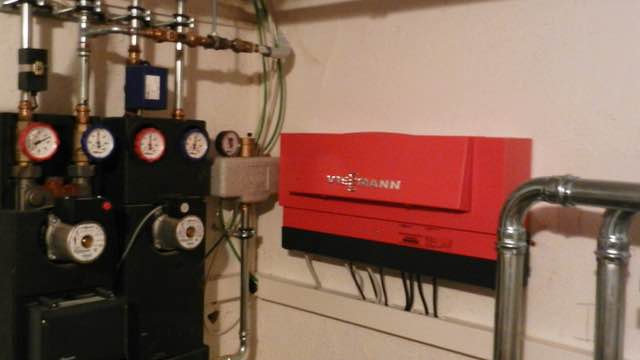

Fix some Heating System

Extend your Babelbee with temperatur sensors and trace the power profile of your heating system. It would help you to find out what those control boxes are really doing all day long. The Babelbees relays could be used to automatically disconnect unneeded pumps.

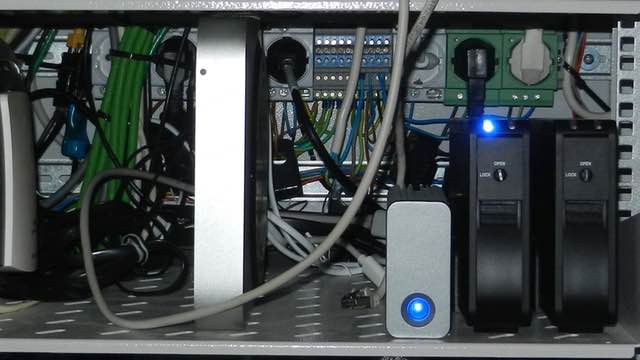

Monitor Your Server

Perhaps you are not sure if the power saving spin down feature of your hard drives is really configured properly. Or you want to test the peak power during boot up? The Babelbee could be your friend on that journey.

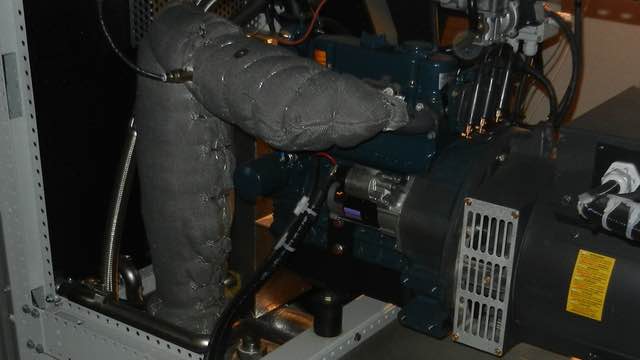

Control a Power Generator

A Babelbee can monitor 3-phase power and read multiple temperatur sensors. The relay can trigger the starter of a power generator. So why not build a cogeneration power plant on your own?

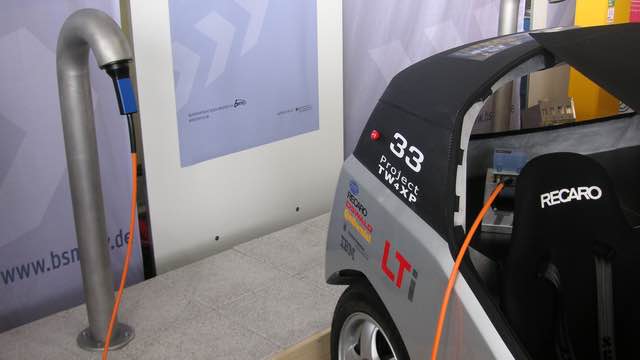

Design a new EV Charging System

Tired of those expensive "wall boxes" for controlling the recharging of your electric vehicle? A Babelbee provides enough features to build your own box. An with the CAN bus ports it is ready for the upcoming charging standard.

Sheep Farming

We have been thinking long and hard but so far have not found a very useful application for a Babelbee in sheep farming. So if you need a break from hacking and soldering … free your mind and try sheep farming!

Software and Easy Access.

The Babelbee is running cool and froody Open Source software. You can modify it … or just use it.

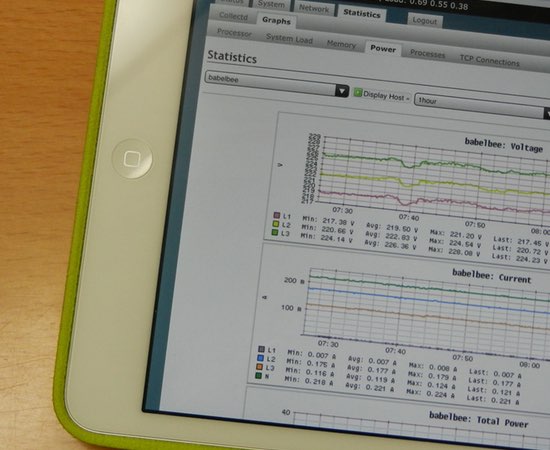

The Web UI of the Babelbee


We are standing on the sholders of giants because we know where the good end of a kill-o-zap points to: "Share and Reuse". Here is a list of some of the external projects which we are leveraging.

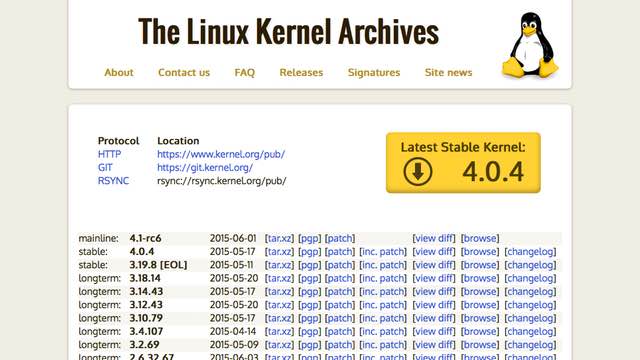

Linux Kernel

The foundation of the open source software stack which the Babelbee is providing is the well known Linux kernel. So you get a full featured operating system with all the bells and whistles.

kernel.org »

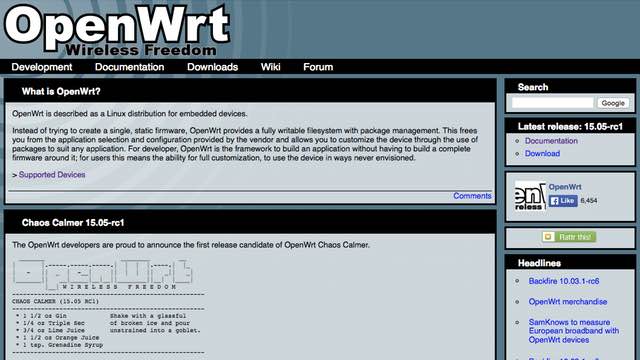

OpenWrt Distribution

While it is possible to run almost any kind of Linux distribution on the Babelbee, we have decided to go with a custom fork of OpenWrt. It was designed for small internet routers and is therefore a robust foundation.

openwrt.org »

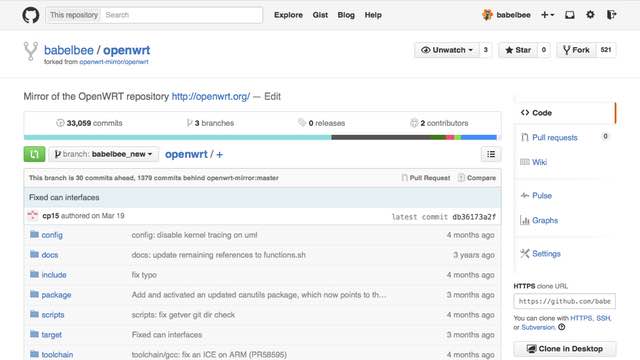

GitHub

To make it easier for you to participate or just to follow the evolution of the Babelbee we will be hosting our code on GitHub, the epicenter of open source communities.

github.com »

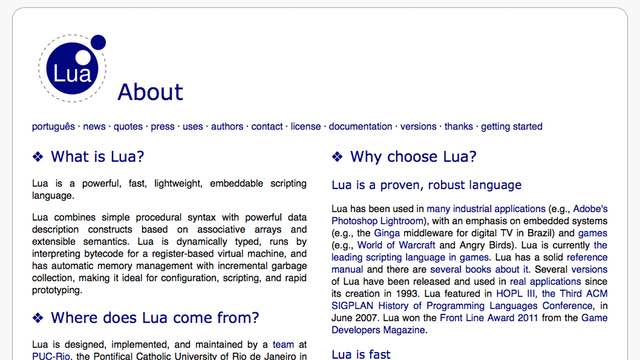

Lua Scripting

While some key parts are and will need to be low level kernel code most of our examples will be provided in scripting languages, mainly Lua, so that you can quickly start playing.

lua.org »

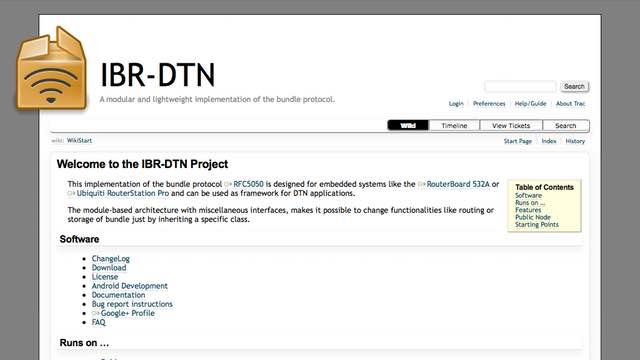

Delay Tolerant Networking (DTN)

It turns out that the distance from Earth to Mars is almost as far as from your living room down into your basement. Typically there is no internet. That is why we will try to provide the intergalactic bundle protocol based on IBR-DTN out of the box.

ibr.cs.tu-bs.de »

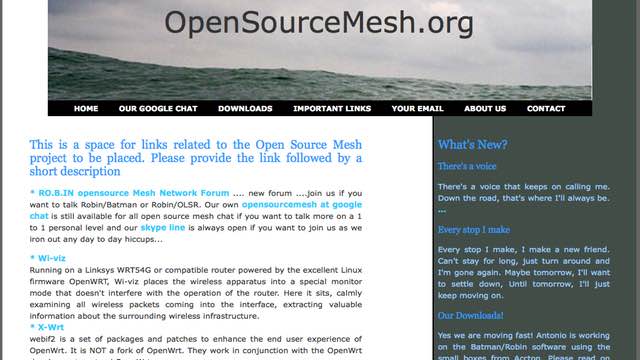

Mesh Networking

Another, more down to earth, communication technology is mesh networking. We still have not made up our mind which implementation to include by default, but mesh networking is important to us.

opensourcemesh.org »

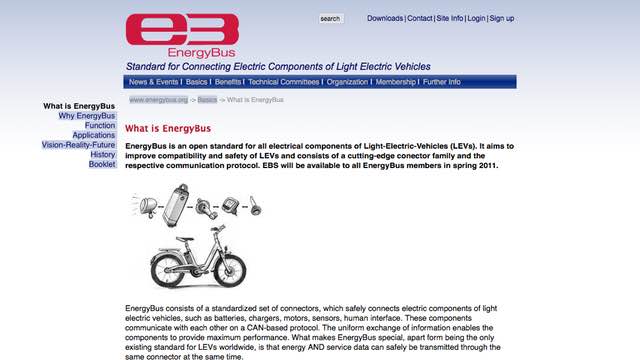

EnergyBus Protocol

Especially in the context of electric vehicles and energy storage the CANopen based EnergyBus is a standard which we hope we can contribute to. The Babelbee already comes with the necessary CAN hardware.

energybus.org »


Here is a quick run down of the different ways in which you can access your Babelbee. Basically you can choose between a web GUI or CLI.

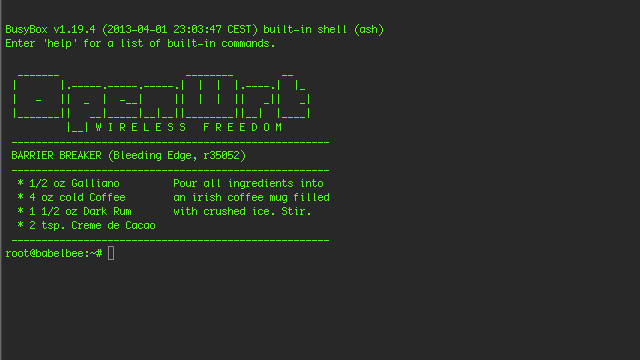

Root Terminal Access

The Babelbee is fully open. So if you know where your towel is, log in as "root" and do as you like. You know what they say about "pain" and "pleasure": ssh, top, ps, vi …

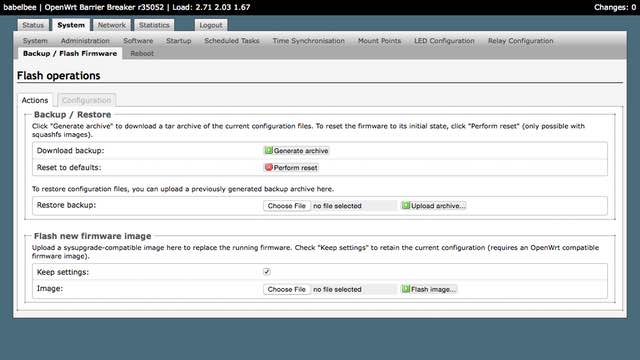

LuCI HTML Interface

Like any regular OpenWrt distribution we are providing an admin interface for your regular web browser. This is where you can configure all parameters and even upload new firmware images.

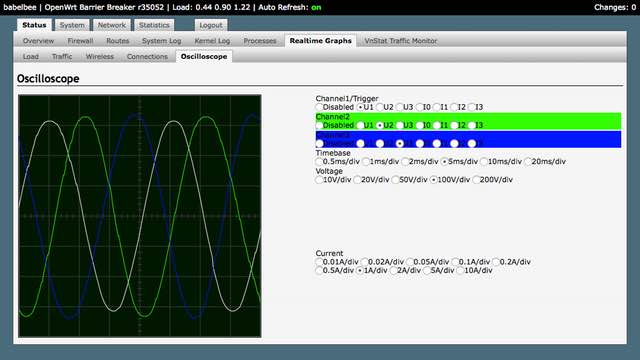

Real Time Oscilloscope

The HTML web interface includes most of the energy related features as well. Among them is a real time oscilloscope view which allows you to watch the AC power sine curves as well as all the pretty distortions which modern power electronics are spreading around. Yummy!

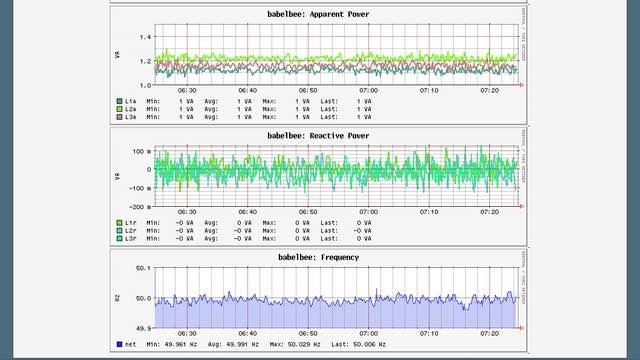

Energy Data Logging

Since we have collectd based data logging right in the system we can provide all kinds of graphs related to the power parameters without any need for external cloud services. So you do not have to worry if it is raining in the cloud.

Features and Datasheet.

The very high precision 24 bit power analyzer chip comes bundled with lots of compute power and many industrial communication busses.

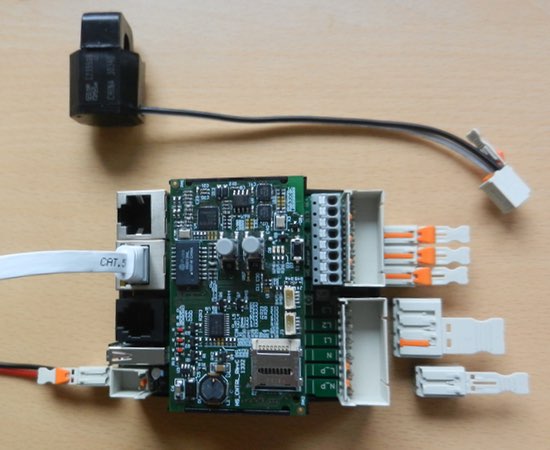

Hardware Details
CPUARM core, 700 MHz
RAM512 MB LPDDR2-S4 SDRAM, 400 MHz
Power AnalyzerAnalog Devices ADE 7880, 24 bit precision
Realtime ClockMicro Crystal RV-8564-C3, super-cap buffered
Storageinternal microSDHC slot (lockable),
external storage can be added via USB
USBinternal Micro USB 2.0 port,
external USB 2.0 host port, switchable 500 mA
Ethernet10/100 BaseT Ethernet via RJ45 port,
Full duplex, Auto-MDIX
Video and Audiointernal HDMI (rev 1.3 & 1.4) port with digital audio. Perfect for debugging.
Human Interaction2 x buttons, 1 x programmable RGB LED
Industrial Communication2 x CAN 2.0B, 1 Mbps via MCP2515-I/ML
2 x RS485 Half duplex, 40 Mbps via ISL3179EIBZ-T
1 x 1-Wire bus master via Maxim DS2482S-100
Power Analyzer Inputs4 x voltage input (L1, L2, L3 and N)
4 x current input for coil or Rogowski sensors
Switches4 or 2 x Panasonic DSP1a-L2, bistable, rated at 230 V, 8 A
0 or 2 x dry contact digital output, max. 12 V
“Hacker” Ports1 x JTAG and 1 x UART (if one RS485 gets disabled)
HousingDIN rail, Phoenix Contact BC 71, 72 x 90 x 61 mm, 180 g
Operating Temp.0 °C to +60 °C (most parts rated -40 °C to +85 °C)
Power Sourcesinternal power supply, 100 - 240 V AC, 47 to 63 Hz,
connector for external 12 V DC source (e.g. battery)
Consumption2.0 to 2,5 Watt (AC) typical

Crowdfunding
is our future.

We are still busy clarifying all the important details. But if you want to get your hands on this froody Babelbee or just want to stay informed about our upcoming international crowdfunding campaign … send us an eMail:
